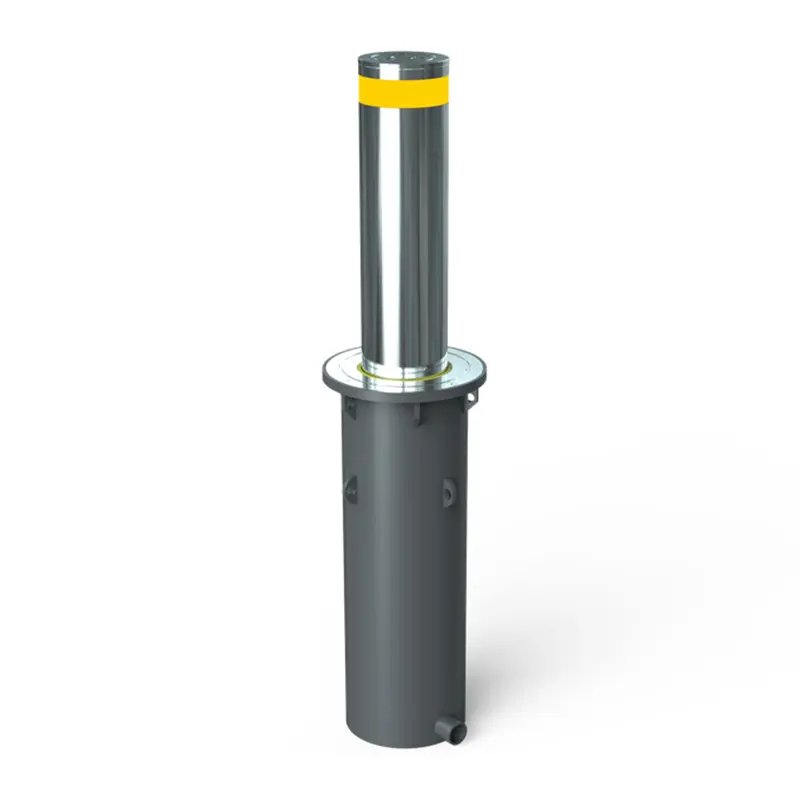

Product Description

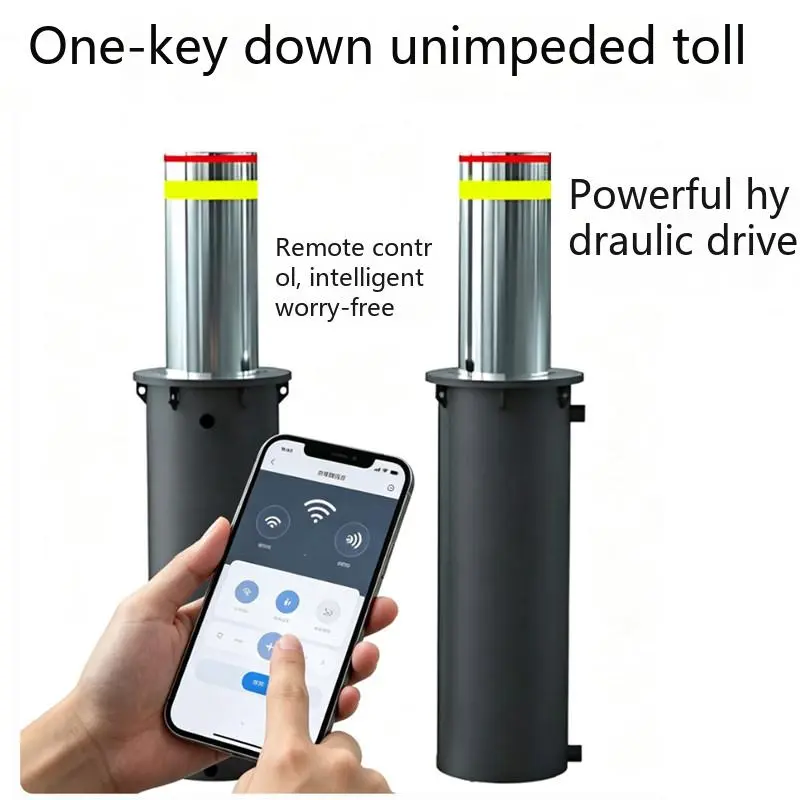

Functional Features
No need to lay underground hydraulic pipelines, simple installation, and low construction cost;
No need for an outdoor hydraulic drive system room, saving ground space and making the overall appearance more aesthetically pleasing;
A single unit failure does not affect the use of other bollards;
Detachable structure, allowing for targeted replacement of damaged parts;
Suitable for group control of two or more groups.
Main Features & Specifications
| Power Supply (V) | 220±10％ 50Hz |
| Power (W) | 350W |
| External Dimensions (L*W*H) (mm) | 365*1100 / 340*1100 (Error ±10mm) |
| Lifting Column Diameter (mm) | 219/168 (Error ±2mm) |
| Lifting Column Thickness (mm) | 6 (Customizable according to customer needs) |
| Lifting Height (mm) | 600 (Error ±10mm) |

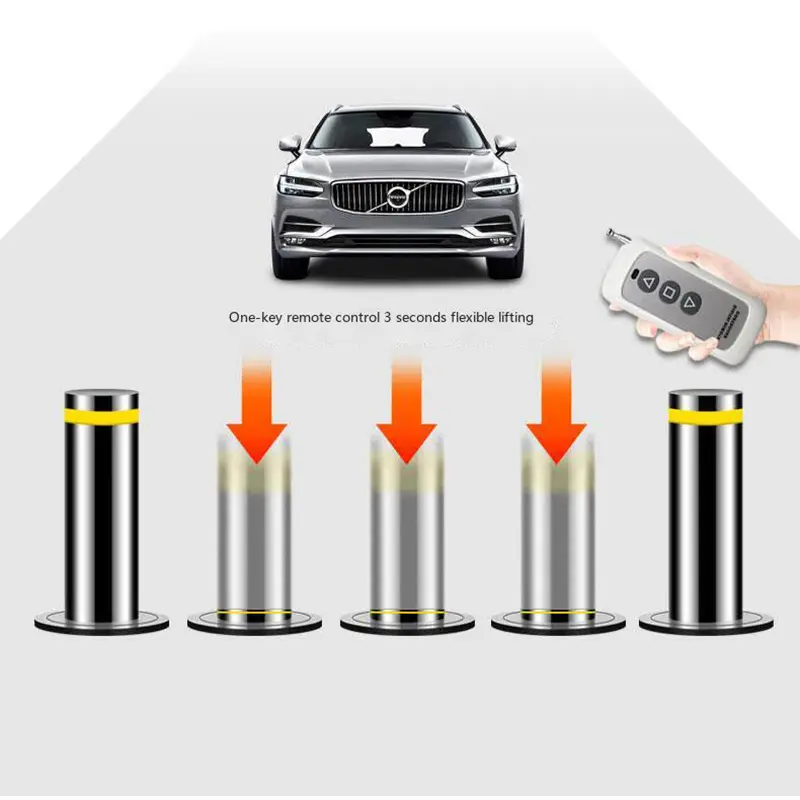

| Lifting Time | Lifting Time 3~4.5S, Lowering Time 3-3.5S |

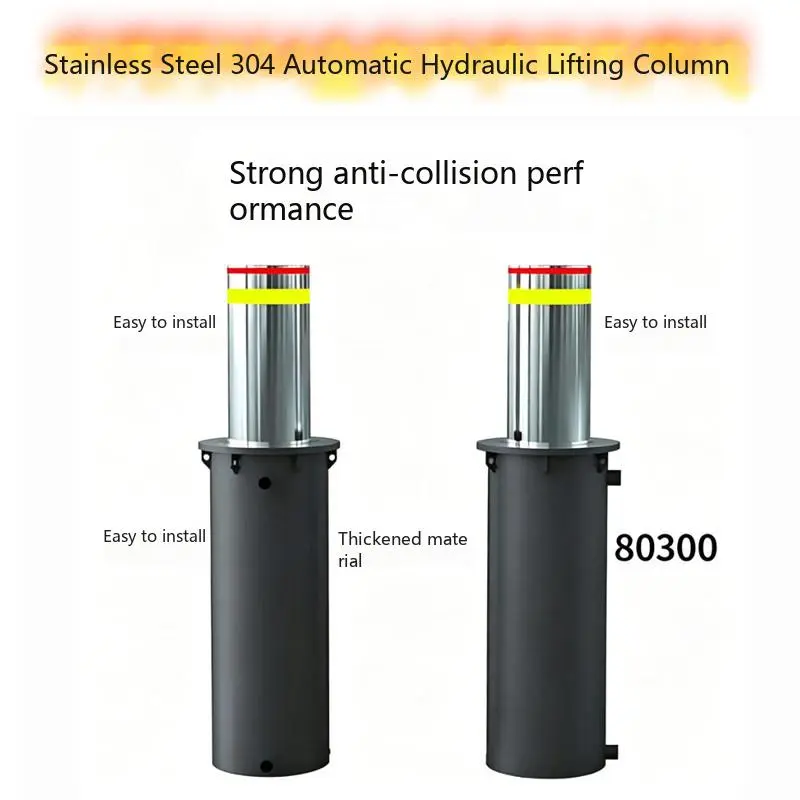

| Surface Treatment | Stainless Steel Surface Polishing / Brushed Treatment |
| Protection Level | IP68 Upgradeable |
| Damage Resistance Level | M30~M50 Upgradeable |
| Working Temperature (°C) | -30~+70 |
| Drive Device | Two-Way Integrated Hydraulic |
| Weight (kg) | 130 |
Daily Maintenance
Maintenance Guidelines
- When performing electrical maintenance, the relevant power supply should be disconnected, and maintenance and repair signs should be hung in a prominent position.
- Check the operation of switches, buttons, and indicator lights once a month.
- Check the screws on each terminal and electrical component for looseness once a month.
- Regularly perform dust removal and maintenance on the equipment surface, electrical control system, and hydraulic control system.
- Regularly tighten the screws of the equipment's transmission mechanism and mechanical fixing mechanism.
- Regularly lubricate and maintain the column.
Scope of Application
1. Important Government & Military Units: The gates of important units such as state organs and the military: install lifting and anti riot barriers, which can be electrically operated remotely controlled by remote control via mobile APP or card swipe, effectively preventing vehicles from other units from accessing the lift, entry and illegal vehicle intrusion.
2. Pedestrian Streets: Install lift type roadblocks at pedestrian street intersections, which are usually in a raised state, restrict vehicle access in case of emergency or special circumstances (such as fire, first aid, leadership inspection, etc.), quickly lower the roadblock to allow vehicles to pass.
3. Road Medians: In non fully enclosed road median, elevated barriers can be used, flat prevent vehicles from turning left or making U-turns. In case of special circumstances such as road construction or road blockage, obstacles can be lowered to divert vehicles.
4. Multi-Purpose Squares: During the day, roadblocks are raised to prohibit vehicles from entering the square, and at night, the square is used as a temporary parking lot, place the roadblock and vehicles can enter and park.
5. Open Parks: Install elevated barriers at the intersection of the open park, and raise the barriers during normal times, block the passage of vehicles and allow visitors to pass freely. In case of special circumstances, lower the lifting barrier, to facilitate the passage of vehicles.

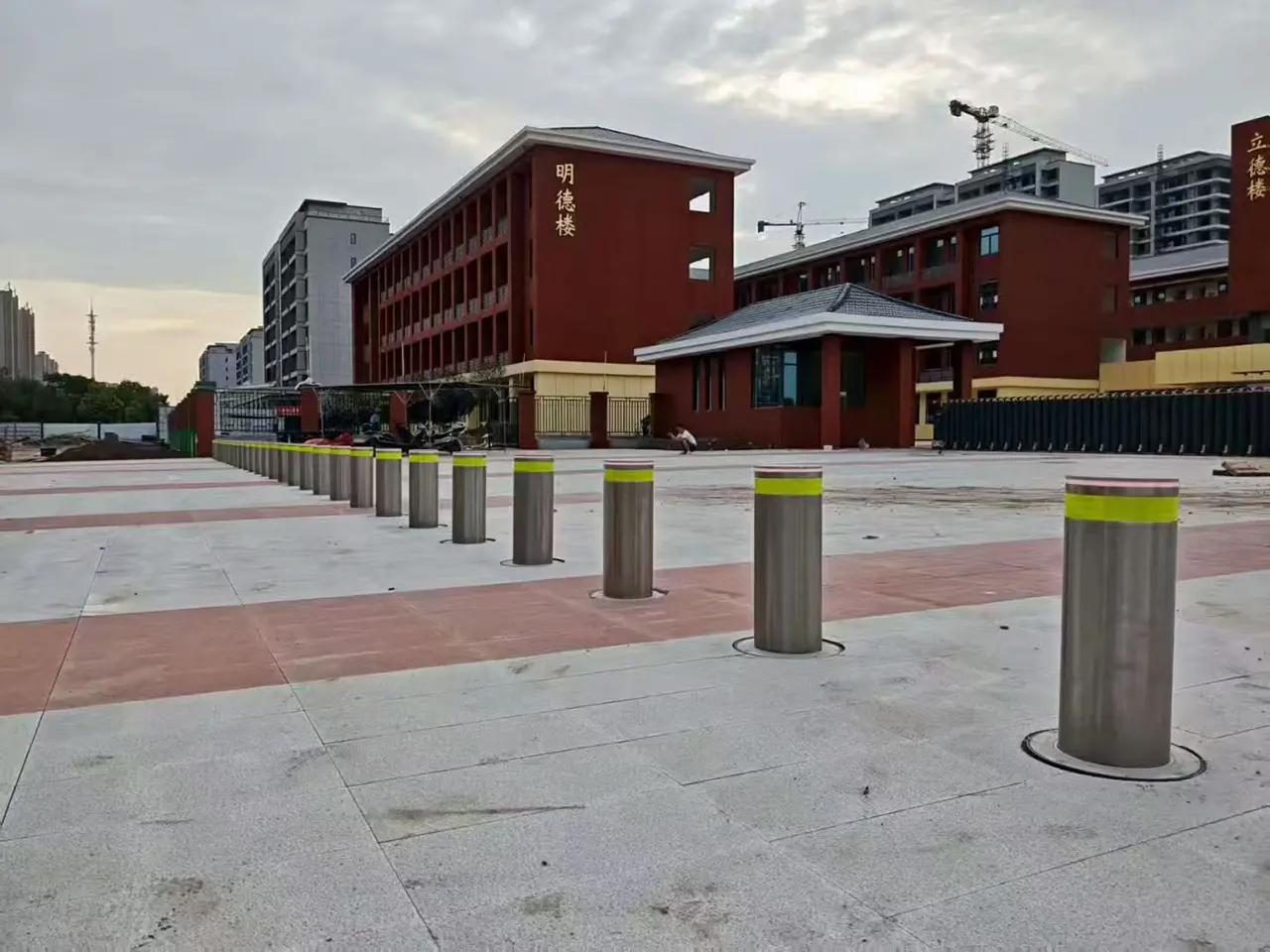

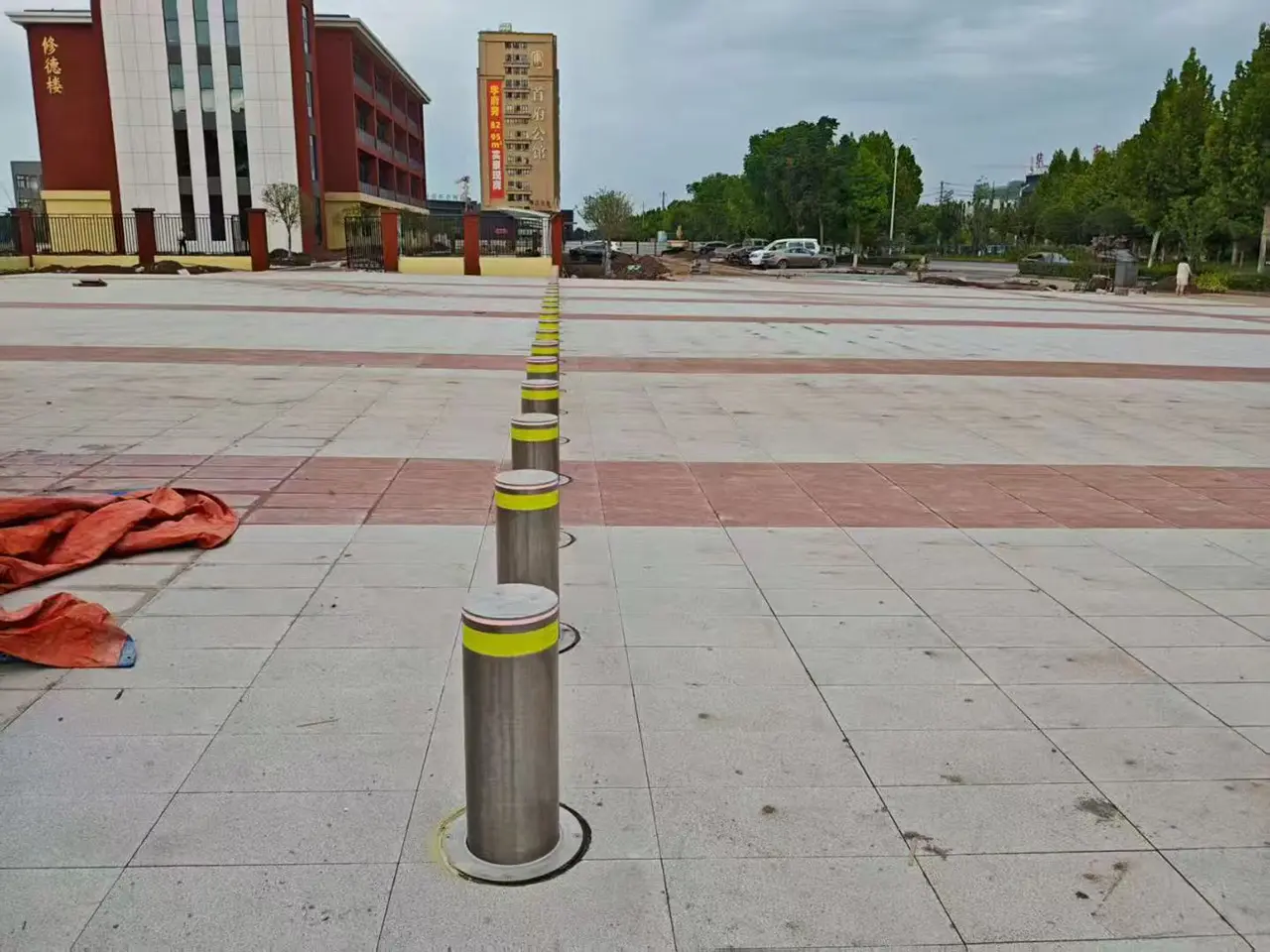

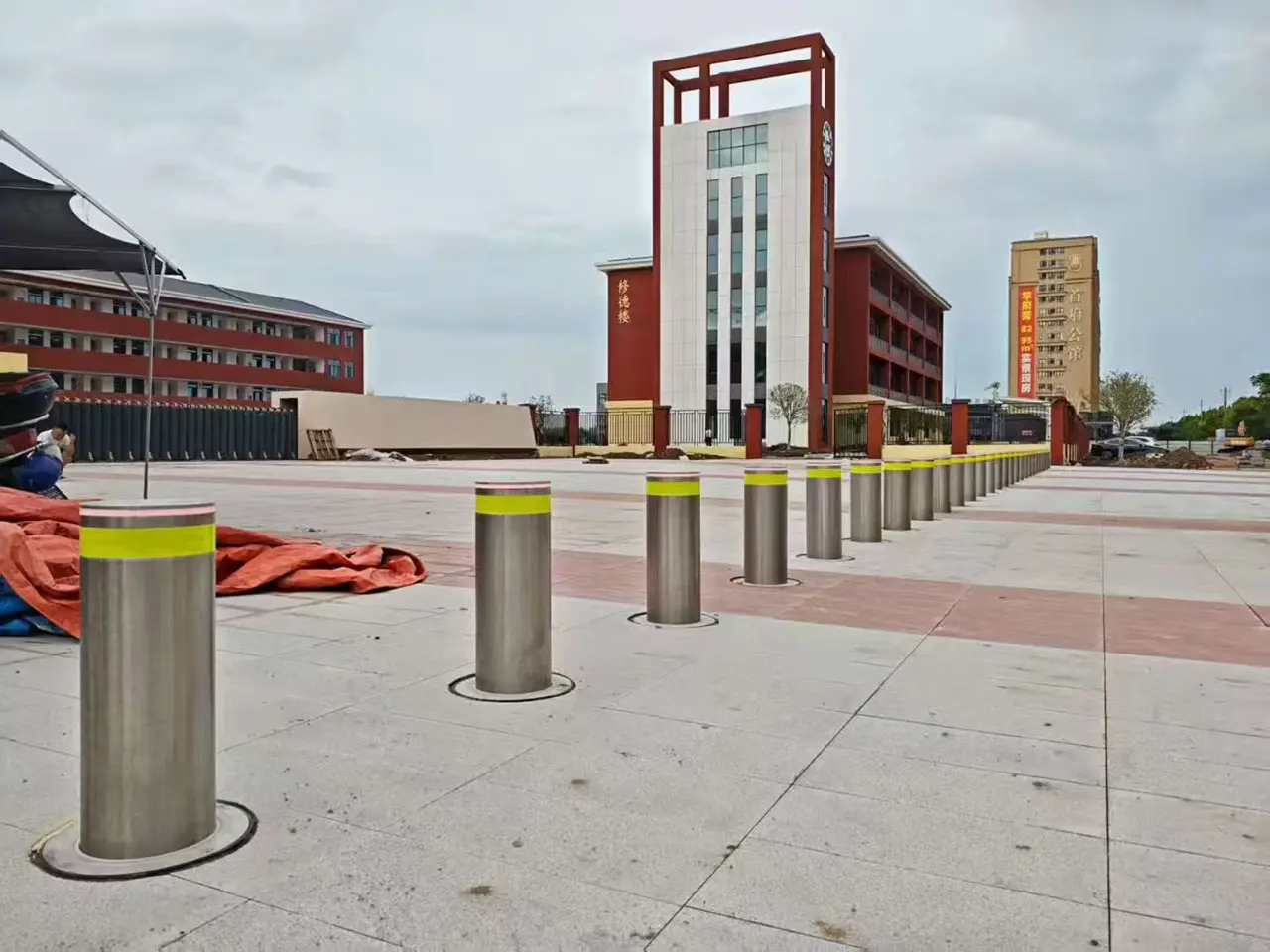

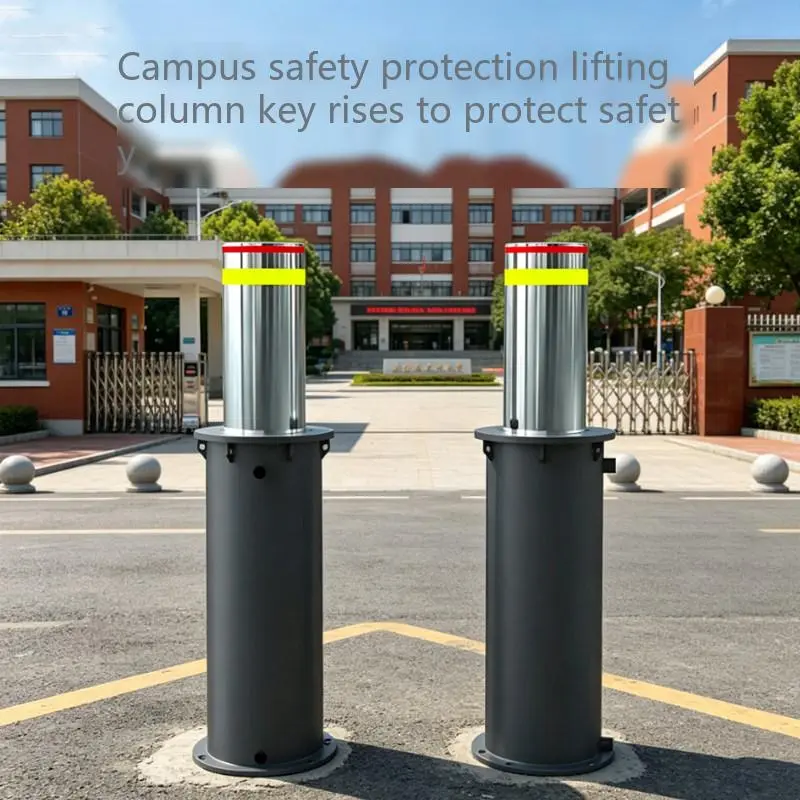

6. Access-Restricted Zones: Places such as residential areas, banks, schools that restrict vehicle access and ensure the effectiveness of fire exits use.
7. Expressways: Emergency road closure is required, using automatic lifting stakes for convenience and speed, and can be lifted the pressure of insufficient police force.
