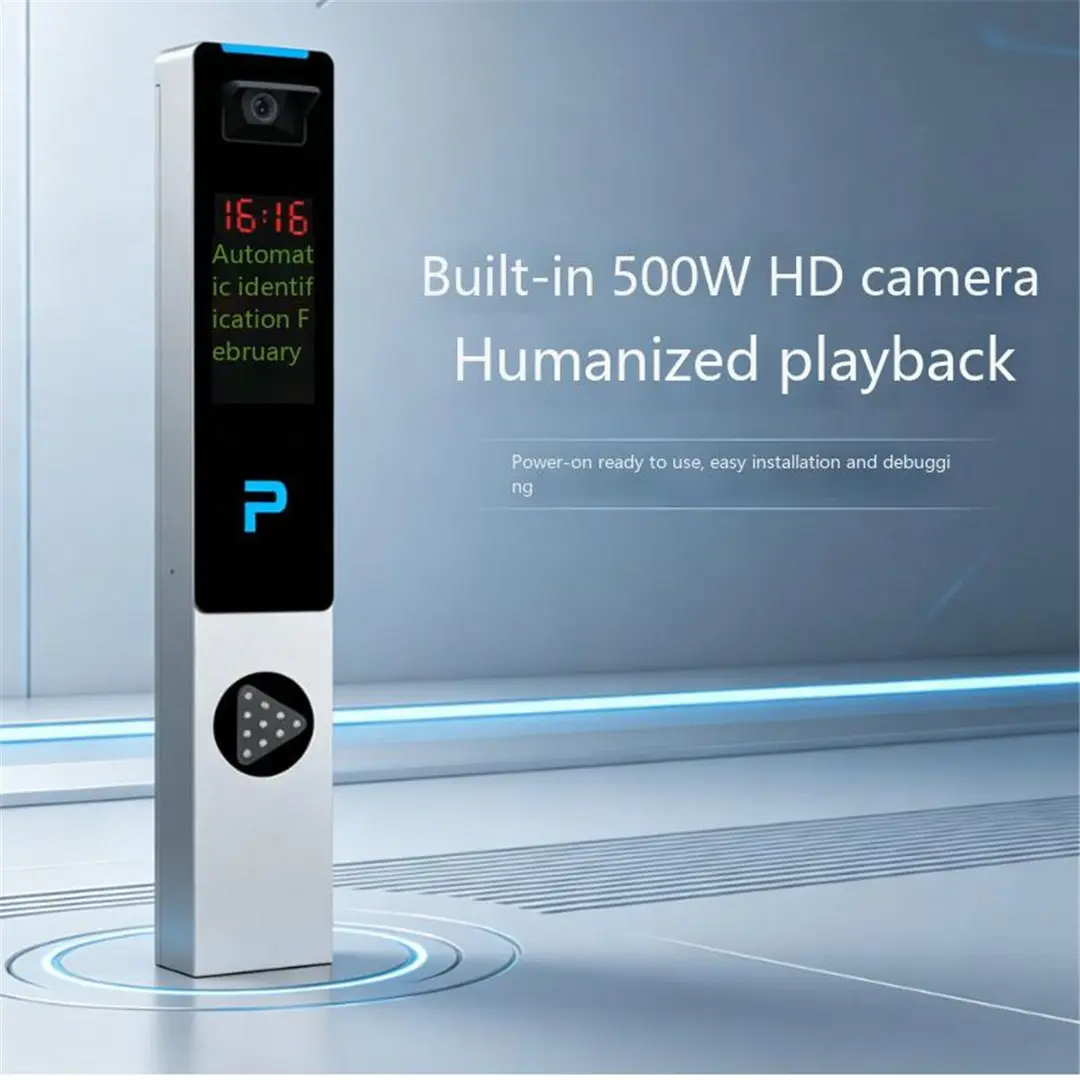

Cheap High definition license plate recognition integrated - AnRuitong II Manufacturer, Factories
Product Description
Main Features
Gate lifts in 0.3 seconds, preventing fare evasion
Standard 4m carbon fiber arm
Equipped with built-in traffic lights (red and green)
Thickened chassis, sturdy and durable
10 million cycles of trouble-free operation
Servo motor, powerful functionality
Specification Parameters
| Basic Parameters | |
| Operating Voltage | AC220V±10% |
| Operating Temperature | -20℃ to +60℃ |
| Relative Humidity | ≤95% without condensation (at room temperature) |
| Rated Power | ≤60W |
| Communication Method | TCP/IP, RS485 |
| Display Type | P4 red green LED module |
| Enclosure Protection Class | IP54 |
| Material and Craftsmanship | High-strength carbon steel, sheet metal spraying |
| Dimensions | 355*155*1370mm (Height * Width * Depth, excluding external camera) |
| Camera Parameters | |
| CPU | dual-core 900MHz processor+CNN hardware acceleration engine (0.5Tops) |
| Image Sensor | 1/2.8" starlight-level CMOS |
| Max Resolution | 1920(H)×1080(V) |
| Lowest Illumination | 0.01Lux (Color) |
| ISP | intelligent ISP, scene-adaptive |
| Data Output | H265\H264\MJPEG\intelligent detection structured data output |
| Standard Configuration | Standard 6mm prime lens; |
| Comprehensive Capturing Recognition Rate | Comprehensive capturing rate≥99.99%; comprehensive recognition rate≥90% |
| License Plate Recognition Regions |
Poland, Germany, France, Brazil, Kenya, Ukraine, Indonesia, Vietnam, Denmark, Israel, Romania, Moldova, Azerbaijan, Switzerland, Slovakia, Netherlands, Serbia, Uzbekistan, Turkey, Kyrgyzstan, Urkaine, Greatbritain, Italy, Croatia≥90% Monaco, Estonia, Czechrepublic, Portugal, Bulgaria, Luxembourg, Finland, Montenegro, Thailand, Slovenia, Hungary, Latvia, Russia, Kazakhstan, Lithuania, Norway, Belgium, Cyprus, Sweden, Georgia, Belarus, Spain≥95% Malaysia, Singapore, Taiwan, Hongkong≥98% |
| License Plate Recognition Function | White list of license plates, intelligent calibration |
| Network Interface | 1-channel 10/100Mbps adaptive RJ45 |
| Other Interfaces | IO output: 2-channel, IO input: 4-channel, RS485: 1-channel |
| USB | 1 USB Type-A interface (optional 4G module) |
| TF Card Slot | 1 TF card slot, supporting 512G at maximum |
| Service | Basic services, supporting various types of secondary development |
| Fill Light Parameters | |
| Number of LED Beads | 9 pieces |
| Maximum Power | 10W |
| Fill Light Control | Intelligent light sensitivity control, adjusts brightness based on ambient light intensity |
| Fill Light Distance | Illuminance greater than 50LUX at a distance of 5 meters |
| Adjustment Angle | Supported |
*Product technical specifications are subject to change without further notice.

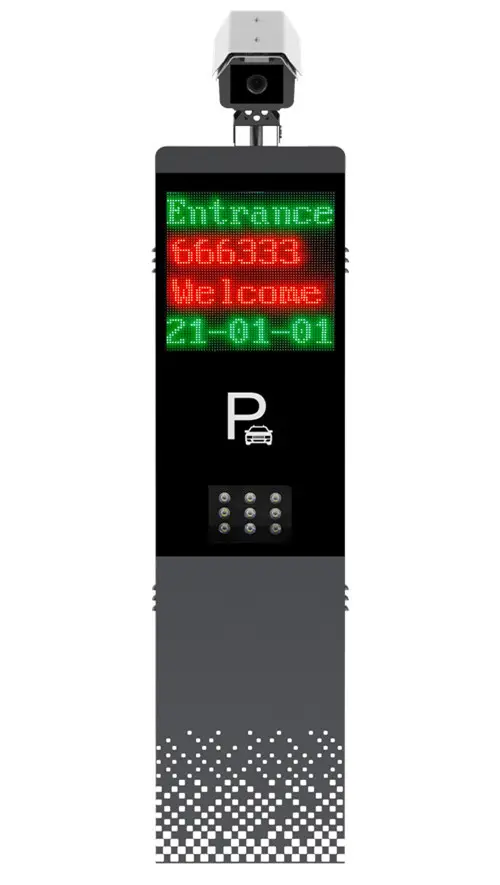

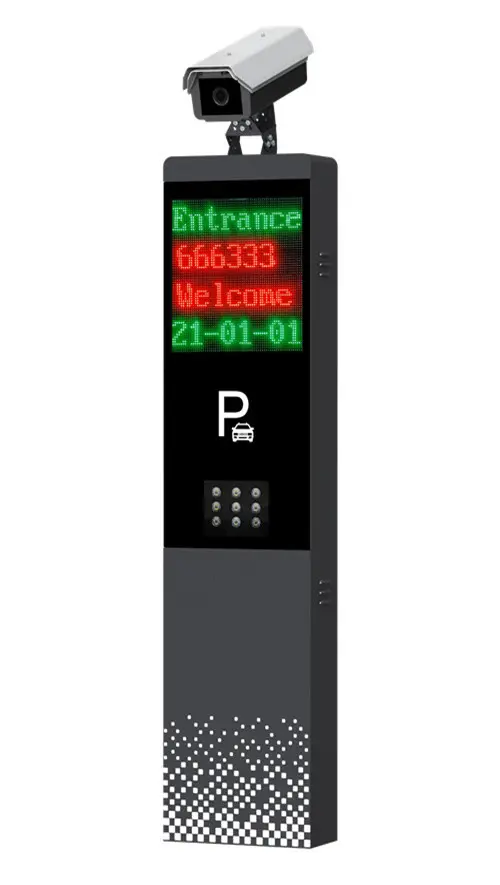

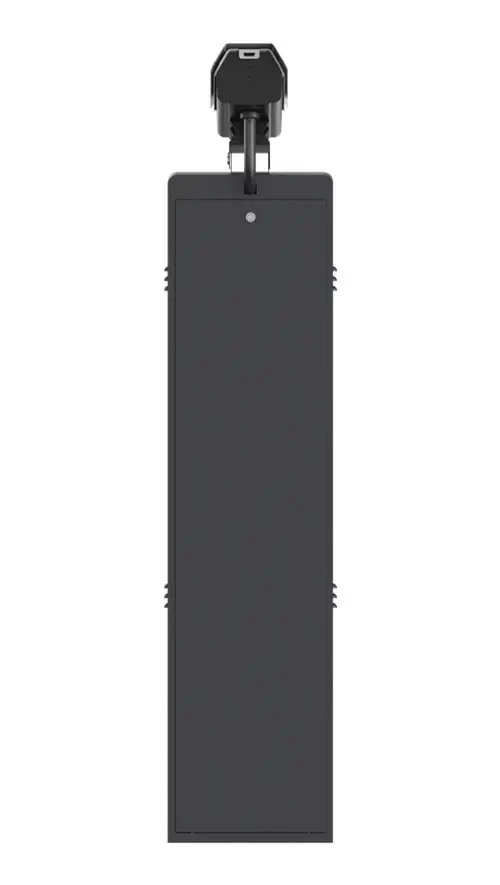

Structural Layout
Product Features
Excellent hardware architecture and stable license plate recognition algorithm, achieving a comprehensive recognition rate of over 99.8%.
2 Megapixel starlight-level imaging with a dual-core processor for CNN acceleration.
Intelligent imaging adjustment, automatically tracking and adapting to light changes, effectively handling challenging scenarios like backlight, frontlight, and ultra-low light. Fill lights are controlled based on image analysis algorithms for more precise illumination.

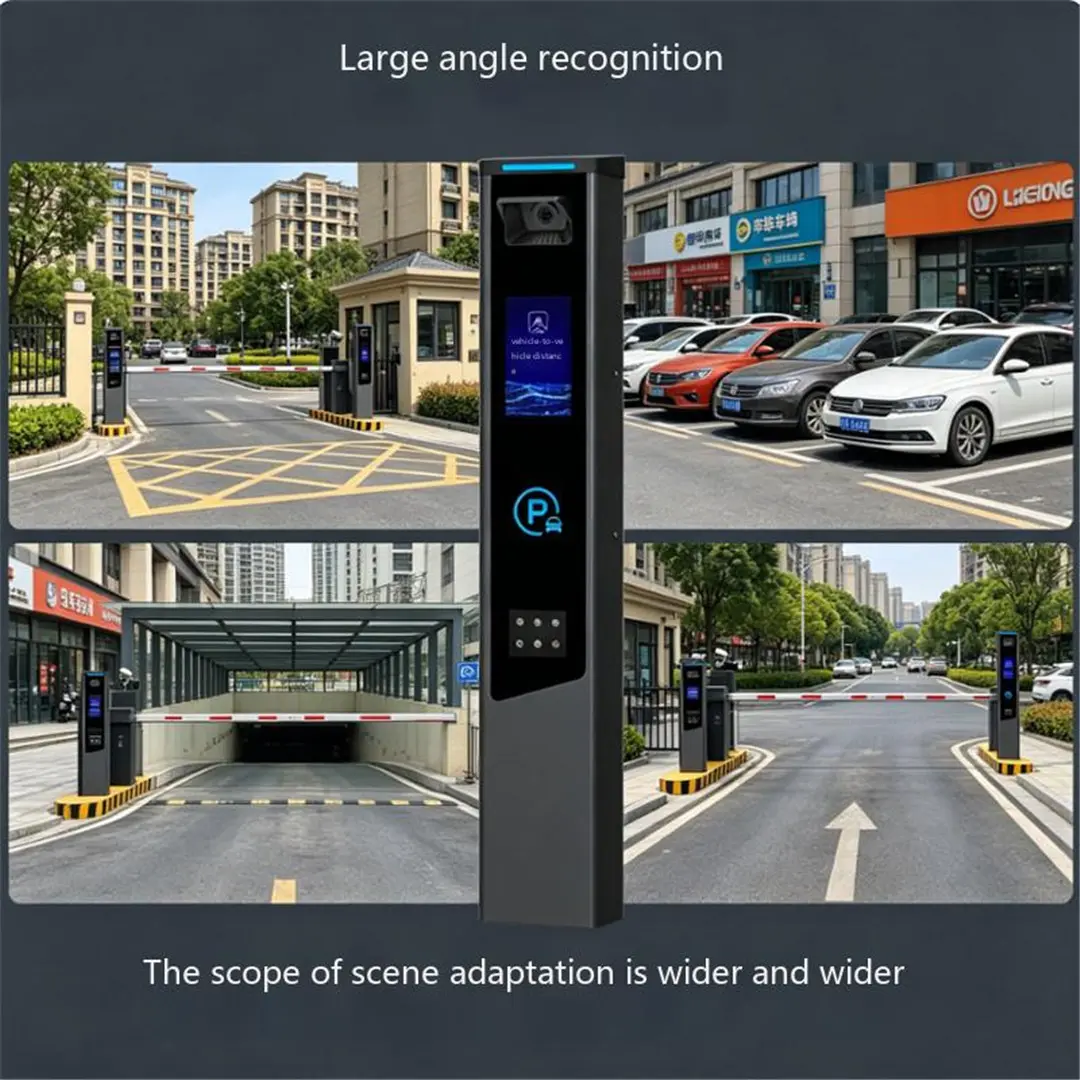

Supports wide-angle recognition, expanding the range and adaptability of application scenarios.
Video stream recognition ensures maximum recognition response speed and accuracy.
The all-in-one machine adopts a dark color scheme for a more unified and coordinated appearance.
Equipped with the T312 display module driver board.
Features an upper red and lower green outdoor high-brightness display module with a 4-line display mode.
Humanized voice broadcast allows for customizable volume levels and time periods.
Software-controlled customization of fill light brightness levels and on/off time periods.
Simple installation and commissioning requiring only one Ethernet cable, one power cable, and one gate opening cable.
Frequently Asked Questions
How fast does the barrier gate open?
The barrier gate lifts in as little as 0.3 seconds, providing ultra-responsive vehicle clearance and effectively preventing vehicle tailgating and fare evasion.
What is the durability and lifespan of the servo motor?
The system is powered by a high-performance servo motor paired with a thickened carbon steel chassis, rated for up to 10 million cycles of trouble-free operation.
How does the camera perform in extreme or low-light environments?
It utilizes a 1/2.8" starlight-level CMOS sensor (min. illumination 0.01Lux) with intelligent scene-adaptive ISP and a 9-LED smart fill light to maintain clear recognition under backlight, headlights, and night conditions.
Which countries and regions are supported for License Plate Recognition (LPR)?
The system supports broad global recognition coverage including Germany, France, Poland, UK, Brazil, Vietnam, Thailand, Spain, Singapore, Malaysia, and many more, with recognition accuracy rates reaching between 90% and 98%+.
What are the wiring and installation requirements?
The unit features an all-in-one architecture that greatly simplifies deployment—requiring only one Ethernet cable, one power cable, and one gate opening cable for full setup and commissioning.
What environmental protection rating does the housing provide?
The enclosure provides an IP54 ingress protection rating and operates reliably in outdoor temperatures ranging from -20℃ to +60℃ with up to 95% relative humidity.
