Easy-maintainable Intelligent Barrier Gate Model D11S Supplier, Quotation
Product Description
Main Features

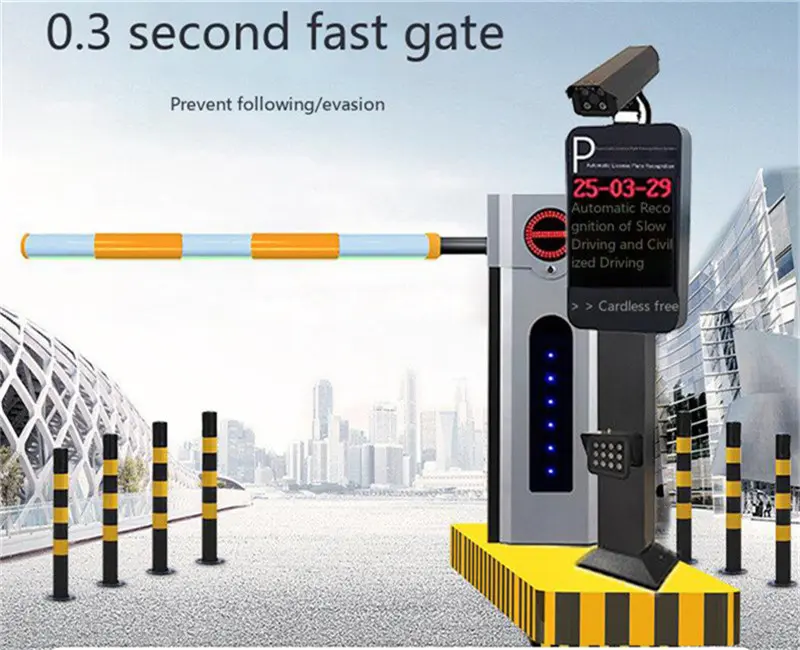

Gate lifts in 0.3 seconds, preventing fare evasion
Standard 4m carbon fiber arm

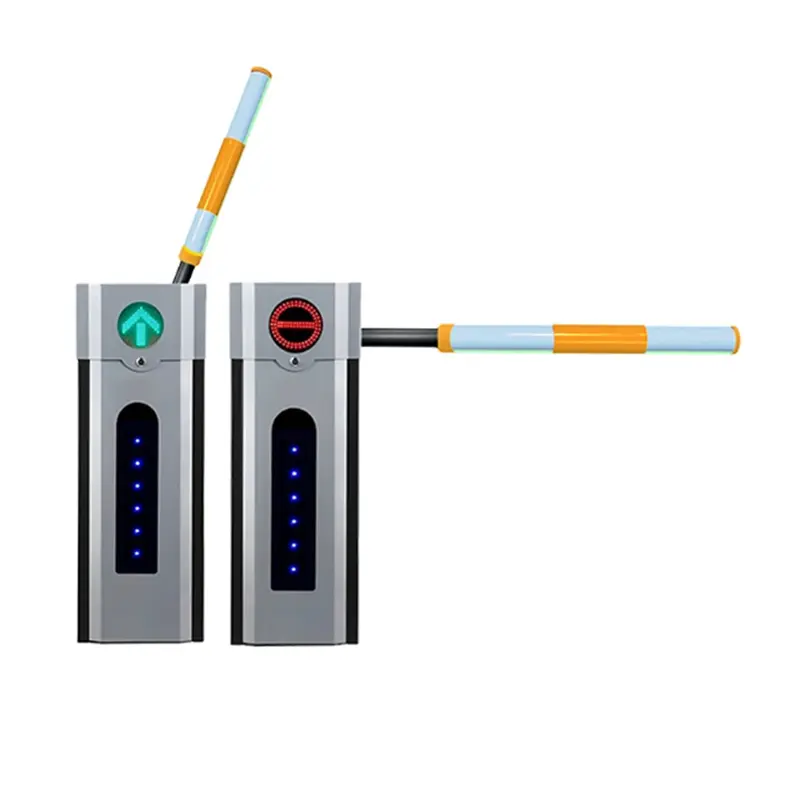

Equipped with built-in traffic lights (red and green)
Thickened chassis, sturdy and durable
10 million cycles of trouble-free operation

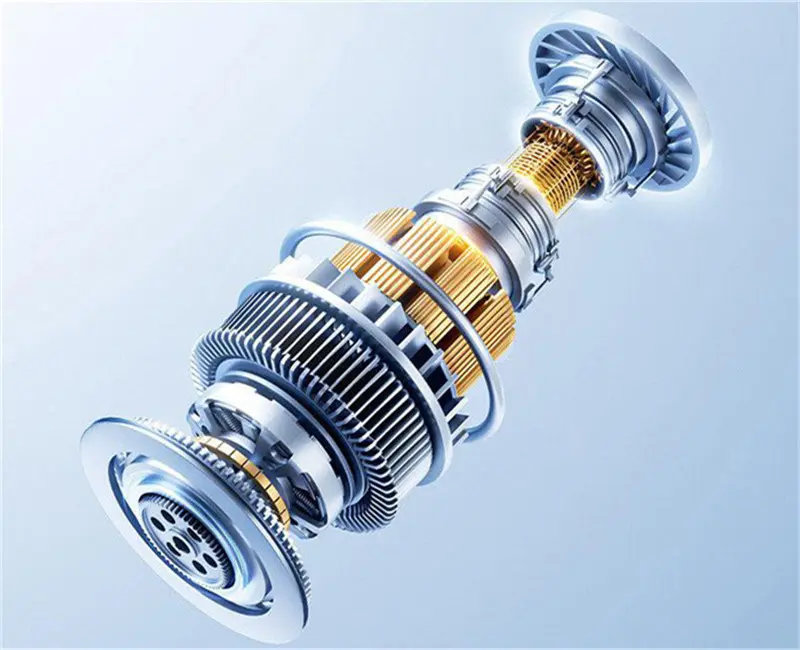

Servo motor, powerful functionality
Technical Specifications
| Dimensions | 940*310*335mm | Motor power | 480W |
| Sheet metal thickness | 2.0mm | Working voltage | DC24V |
| Arm Types | Carbon fiber arm/Anti-collision foam arm | Working environment | -30℃~75℃ / Relative Humidity≤90% |
| Max. Arm Length | Limited to Straight arm 4m | Running speed | 0.3s~1s |
| Supported Peripherals | Anti-crush radar, power-off lift, remote gate opening | Lifetime | ≥5 million times |
| Included Accessories | Encrypted remote control*2 | Protection Level | IP54 |
| Installation Accessories | Fixed screws, pressure strips | Material | Body made of cold-rolled steel / aluminum alloy arm |
Installation
It should be installed on a level concrete foundation by professionals following the installation manual to ensure the device is level and securely fixed. After installation, debugging is required to ensure smooth lifting and accurate identification.
Maintenance
Regularly clean the surface dust, check if the barrier rod connection is secure, and ensure the motor operates normally. It is recommended to perform a full maintenance every six months, replacing worn-out parts (such as limit switches, springs, etc.).
Precautions
- Do not allow people to approach the moving area of the barrier rod while the equipment is operating.
- Avoid using the equipment during adverse weather conditions such as heavy rain or strong winds.
- Unauthorized personnel should not disassemble or repair the equipment.
Frequently Asked Questions (FAQ)
How fast does the intelligent barrier gate operate?
The gate lifts at an ultra-fast speed ranging from 0.3s to 1s, effectively mitigating traffic congestion and preventing fare evasion.
What types of barrier arms are compatible?
The system supports carbon fiber straight arms up to 4 meters in length, as well as anti-collision foam arms to minimize impact damage.
Can the gate withstand outdoor weather conditions?
Yes, it features an IP54 protection level and operates reliably in environments with temperatures from -30℃ to 75℃ and humidity up to 90%.
What happens during a power failure?
The system supports power-off lifting peripherals, allowing the arm to be raised manually or automatically during emergency situations and power outages.
How often should routine maintenance be performed?
A comprehensive check is recommended every six months to clean surface components, verify barrier rod stability, and replace standard wear parts such as limit switches and springs.
