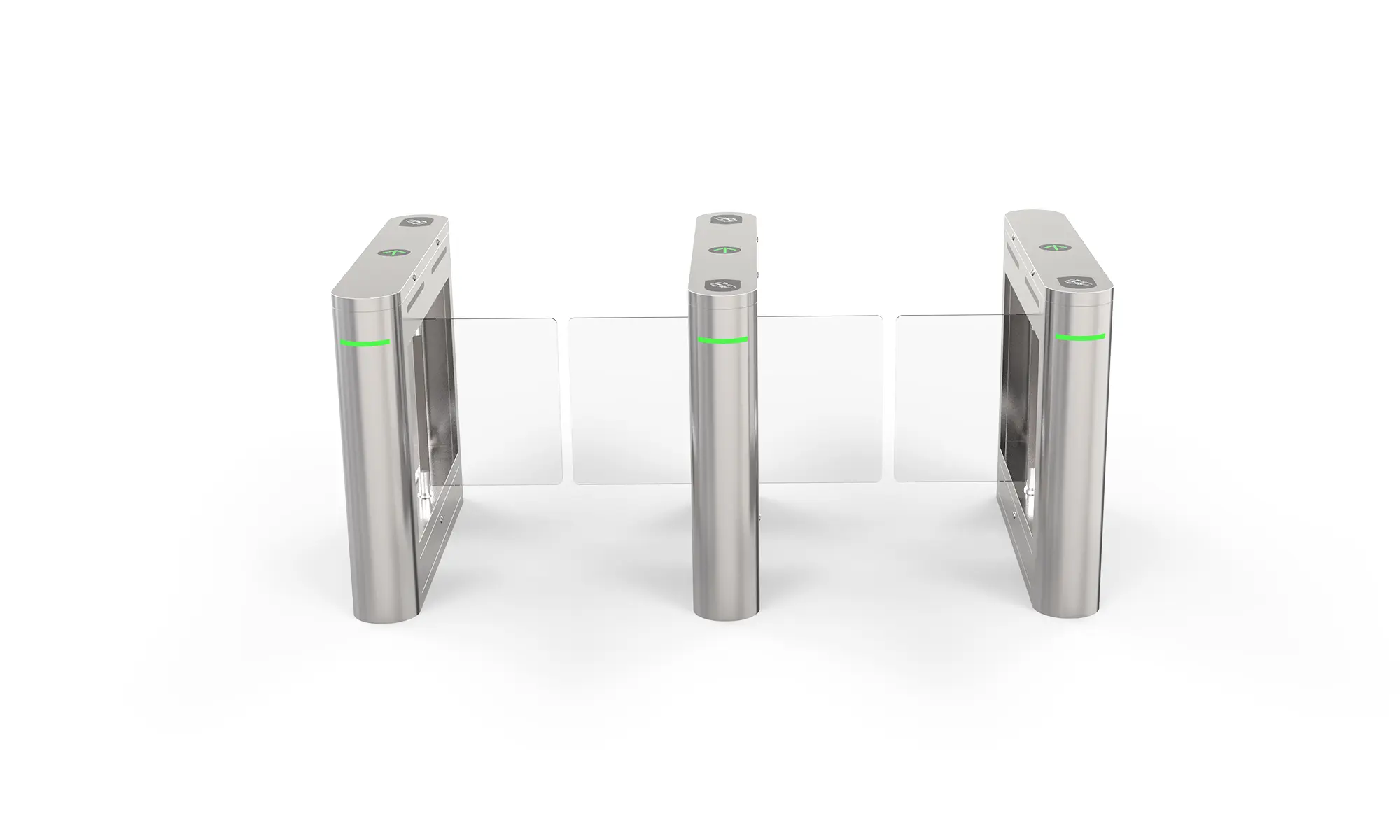

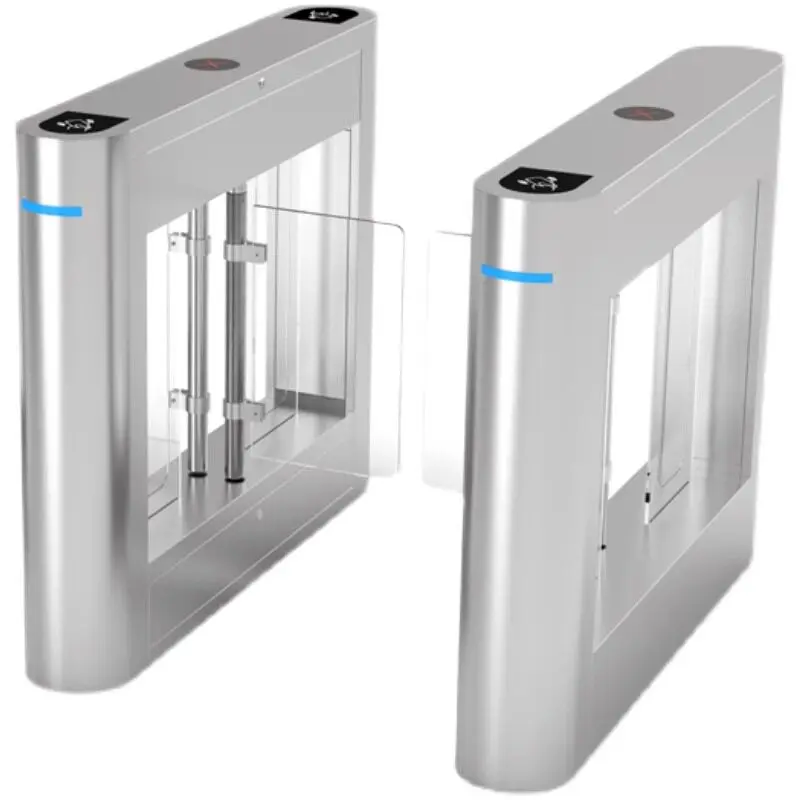

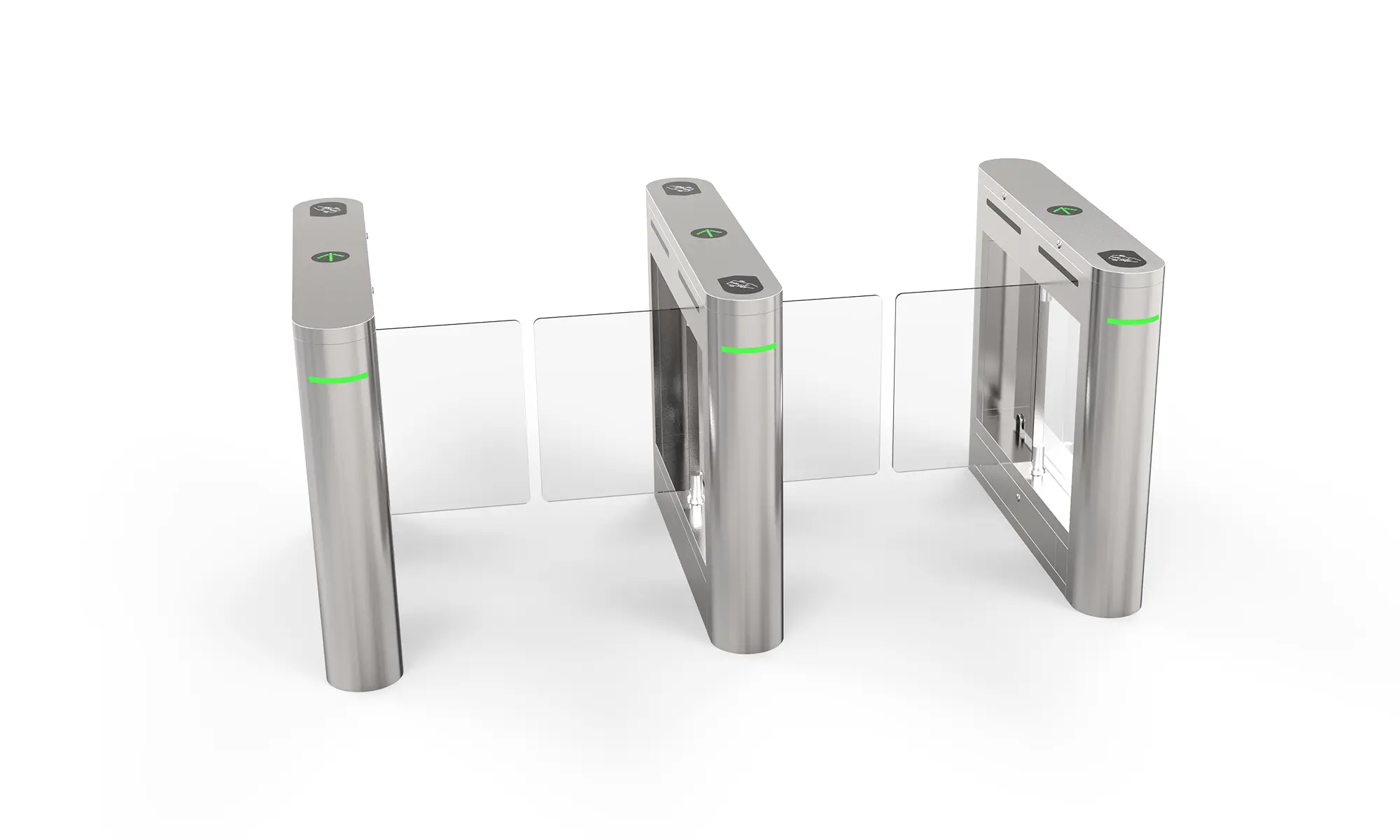

Buy Discount Office Building Entrance Attendance Security Access Control Turnstiles Gate Swing Barrier Speed Gate Manufacturers, Price
Product Description
Main Features
Bidirectional access control, configurable for inbound/outbound modes.
Automatic reset: gate closes automatically after set time if no one passes.
Anti-collision function: the swing arm rebounds when blocked, no damage to people and equipment.
Anti-tailgating, only one person can pass after one valid authorization.
Power failure automatic open, meet fire evacuation standards.

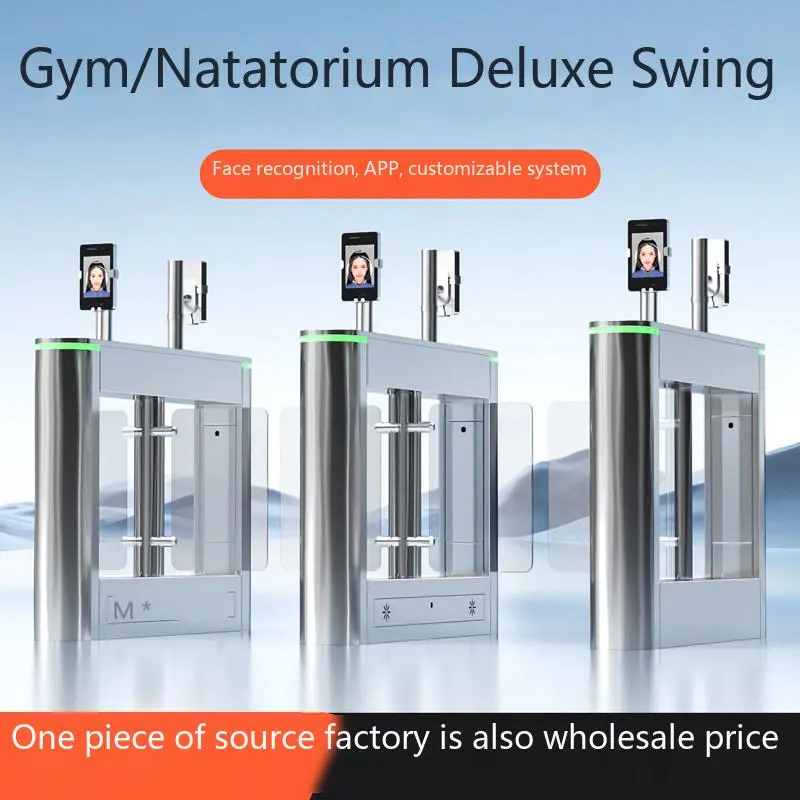

Can connect face recognition, IC card, QR code reader, access control system.
Built-in people counting function.
Full English Technical Parameters
Technical Parameters
Overall size |
1200(L)×260(W)×980(H)mm |
Channel width |
500–580mm optional |
Main cabinet |
304 stainless steel, 1.2mm thickness |
Swing panel |
stainless steel / acrylic optional |
Input power |
AC220V ±10% 50Hz |
Driving motor |
DC24V brushless motor |
Standby current |
100mA |
Peak working current |
2A |
Gate opening time |
0.4–0.8s adjustable |
Passage capacity |
35–42 persons per minute |
Auto reset delay |
2–10 seconds adjustable |
Working temperature |
-25℃ ~ +60℃ |
Protection grade |
IP44 (indoor use; IP65 waterproof version optional for outdoor) |
Working modes |
two-way controlled, free-in controlled-out, controlled-in free-out |
Built-in |
anti-smash, anti-collision, power-off open function |
Installation
No Battery Emergency Swing Turnstile
Solve traditional turnstile flaws: anti-pinch, impact protection, no aging battery risks. Max 60 people/min throughput, power-on self-test & fault alarm. SUS stainless steel cabinet, wide temperature -25℃~+75℃. For residential, gym, school, office building. Free technical solution support.
Compact swing turnstile for narrow entrances, triple safety protection, fast opening, stable long-term use. Support UPS backup power & fire emergency release. Factory R&D manufacturer, small MOQ accepted. Send inquiry to get quotation & installation drawings.
Frequently Asked Questions
What happens to the swing turnstile during a power failure?
The turnstile features an automatic open function upon power loss to meet strict fire evacuation standards, allowing free emergency passage without battery aging hazards.
Which identification systems can be integrated with this gate?
The system supports integration with face recognition cameras, IC card readers, QR code scanners, and mainstream third-party access control systems.
How does the anti-collision and safety mechanism protect pedestrians?
It features an anti-collision swing arm that automatically rebounds when an obstruction is detected, anti-pinch design, anti-smash safeguards, and support for up to 18 pairs of infrared sensors.
Can this equipment be installed in outdoor areas?
The standard unit is IP44-rated for indoor use, but an IP65 waterproof version is available optionally for outdoor applications across temperatures ranging from -25℃ to +60℃ (or up to +75℃).
What is the passage capacity and operating speed?
The gate features an opening time adjustable between 0.4 and 0.8 seconds, delivering standard capacity of 35–42 persons per minute with maximum throughput up to 60 persons per minute.
What passage modes are supported?
It supports bidirectional access control with customizable configurations: two-way controlled, free-in controlled-out, or controlled-in free-out modes.
