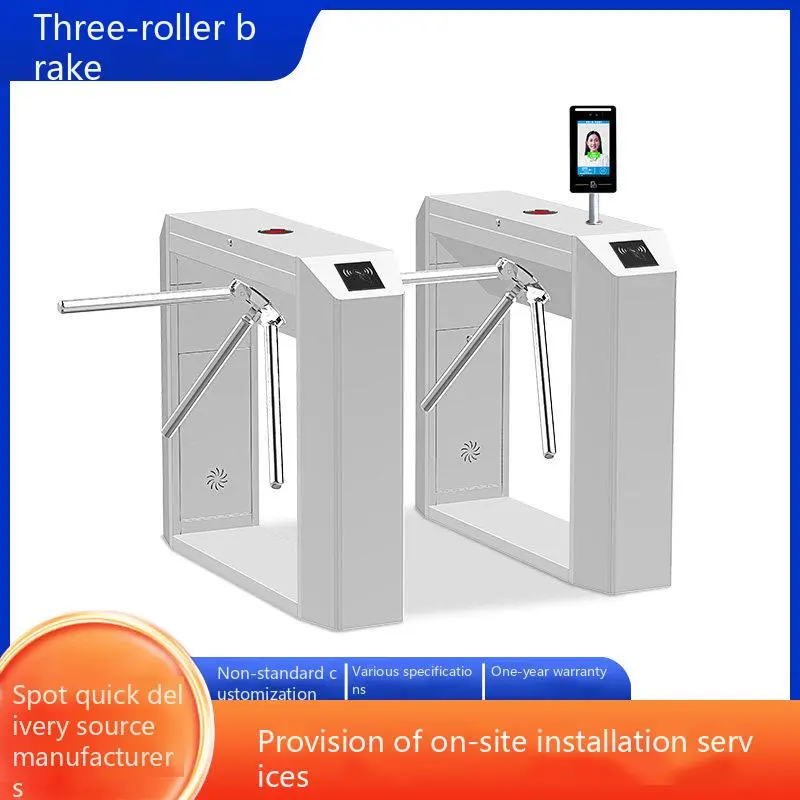

Advanced Factoryoem/ODM Durable Smart Fast Speed Swing Automatic Used Industrial Gym Turnstile Gate Supplier, Factory
Product Description

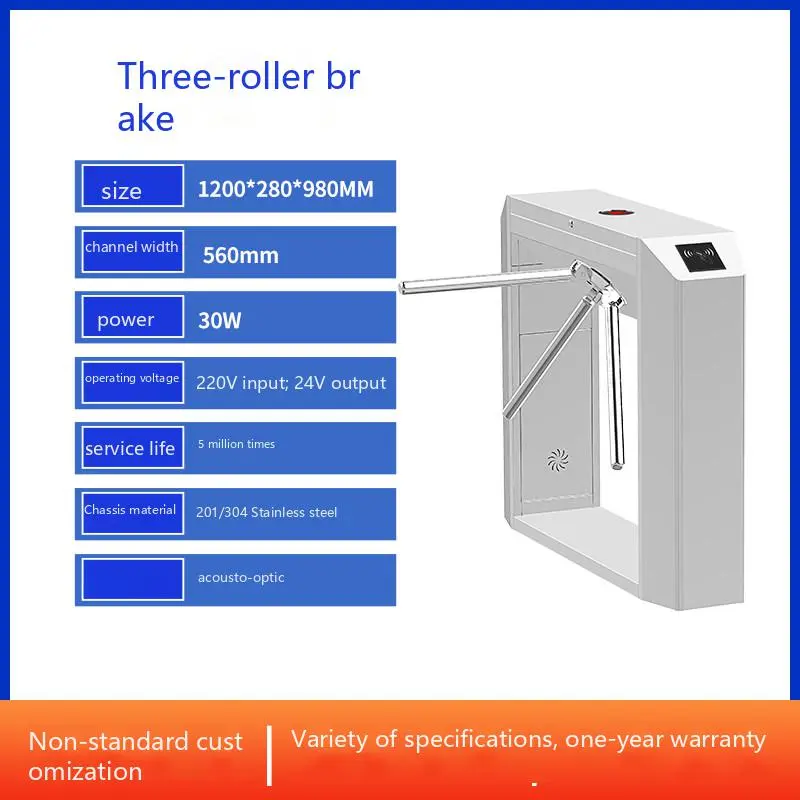

Technical Parameters
| Overall Dimension | 1200(L) × 280(W) × 980(H) mm |
| Channel Width | 550–600 mm |
| Rod Length | 500 mm |
| Main Material | 304 stainless steel, 1.5mm thick plate |
| Turn Rod | Solid stainless steel round bar |
| Power Supply | AC220V±10% 50Hz, converted to DC24V by built-in power supply |
| Standby Current | 100mA |
| Peak Working Current | 2A |
| Motor | DC brushless motor |
| Passage Capacity | 30–40 persons per minute |
| Auto Reset Time | 3 seconds after passage |
| Functions | Anti-tailgating, only one person allowed per valid authorization; automatic rod dropping when power failure to keep channel open. |
| Compatible Systems | IC card reader, face recognition, QR code scanner, access control controller. |
| Applicable Environment | Indoor available, rainproof version optional for outdoor installation |
| Working Temperature | -25℃ ~ +60℃ |

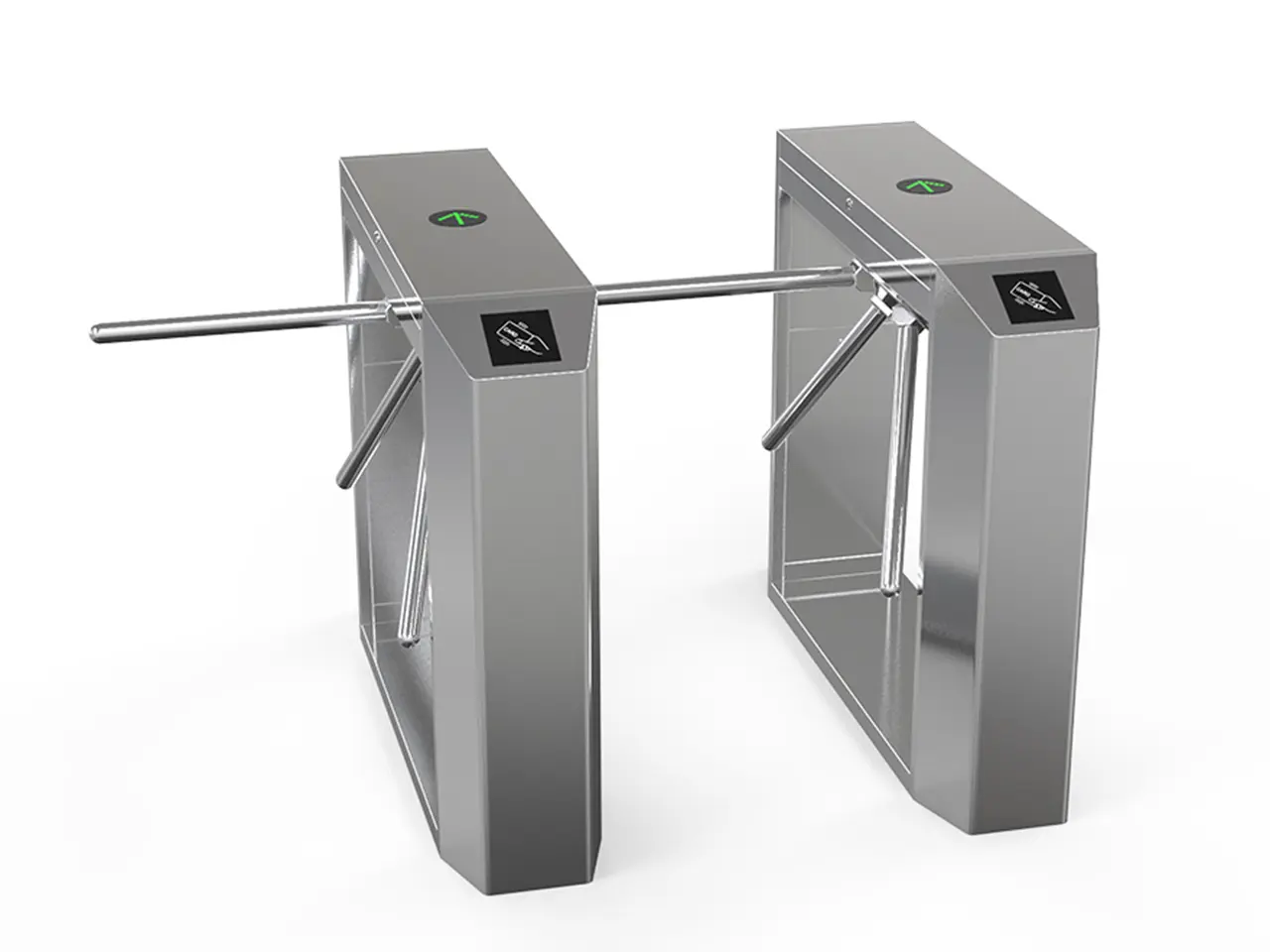

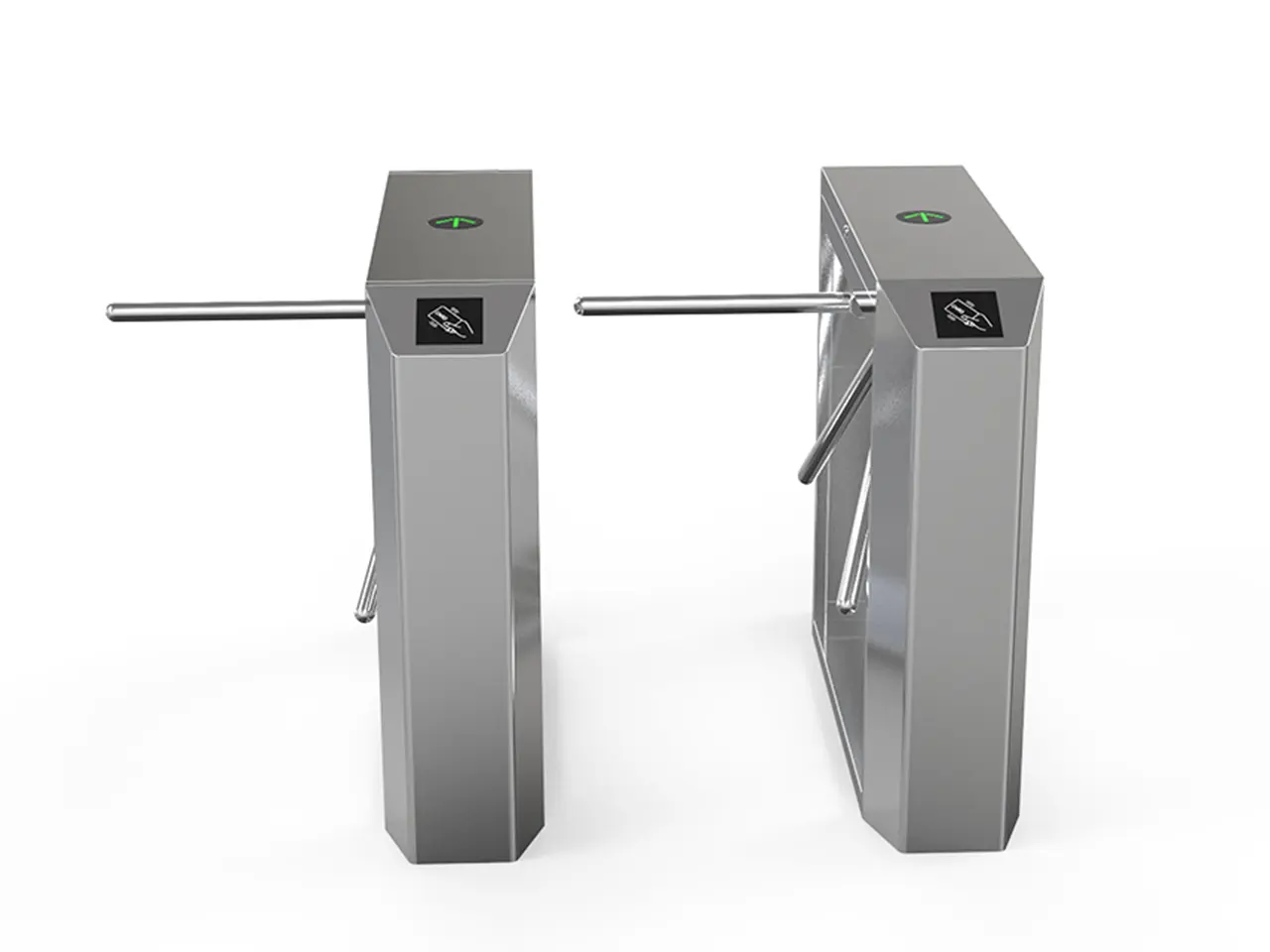

Installation
Frequently Asked Questions
Q
What is the pedestrian throughput capacity of this turnstile?
The turnstile handles a passage capacity of 30 to 40 persons per minute, with a rapid automatic reset cycle of 3 seconds following each passage.
Q
How does the system ensure emergency safety during a power failure?
In the event of a power outage, the turnstile automatically drops its turn rod to keep the lane unobstructed for immediate emergency evacuation.
Q

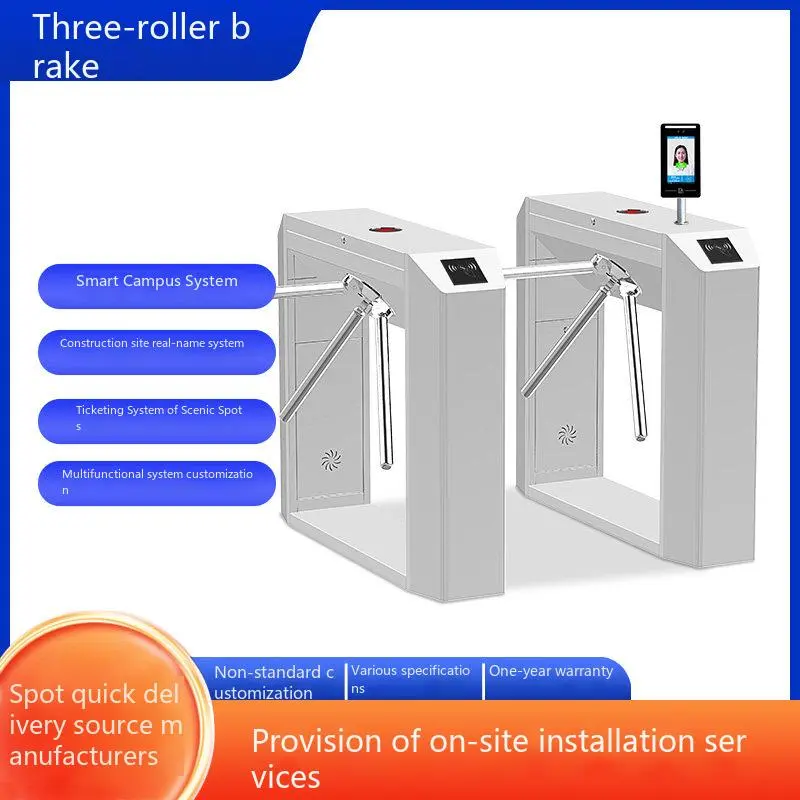

Which access control systems can be integrated?

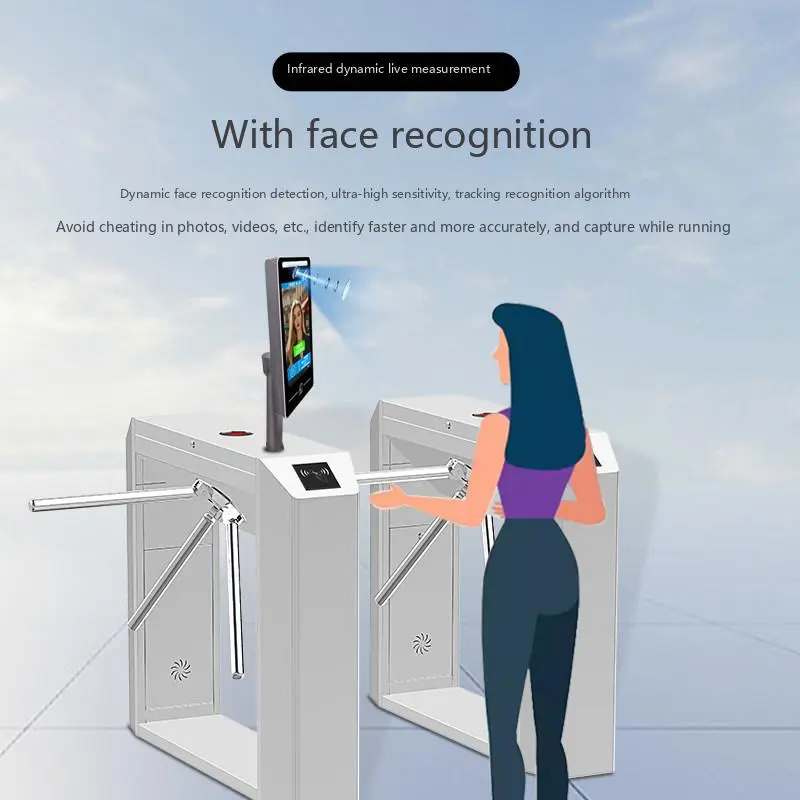

The gate is fully compatible with IC card readers, facial recognition terminals, QR code scanners, and mainstream third-party access control controllers.
Q
Can this turnstile be installed outdoors?
Yes. While designed for indoor installation, an optional rainproof version is available for outdoor deployment. It functions reliably within a temperature range of -25℃ to +60℃.
Q
What materials are used in construction?
The chassis is constructed from durable 1.5mm thick 304 stainless steel plate, and the gate barrier features a solid stainless steel round bar.
Q

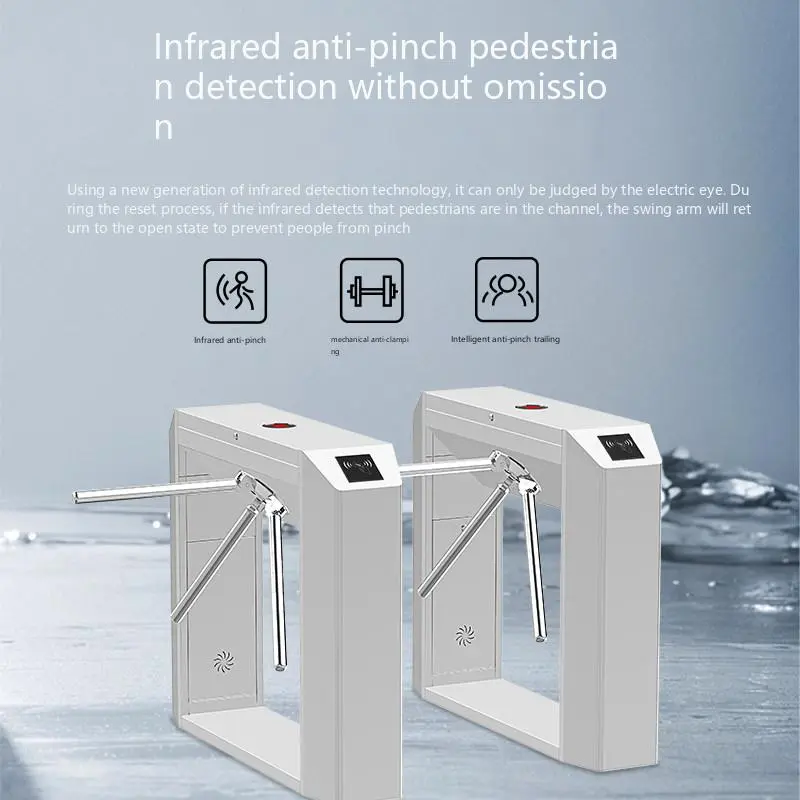

How does the anti-tailgating function work?
The anti-tailgating mechanism strictly authorizes passage for only one individual per valid credential verification, preventing unauthorized follow-through.
